high voltage rectifier VIZ-70/32 - (NOS)

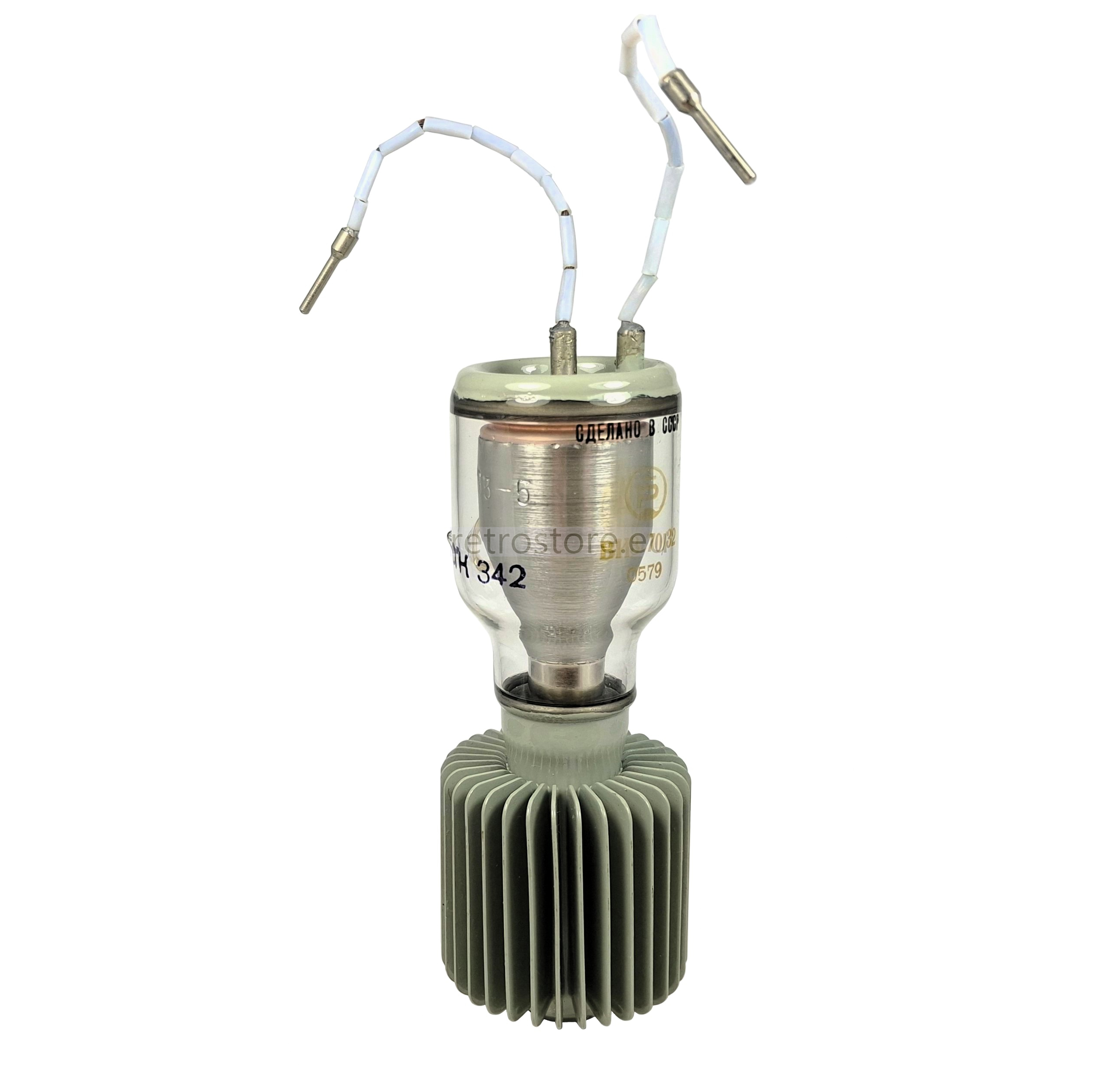

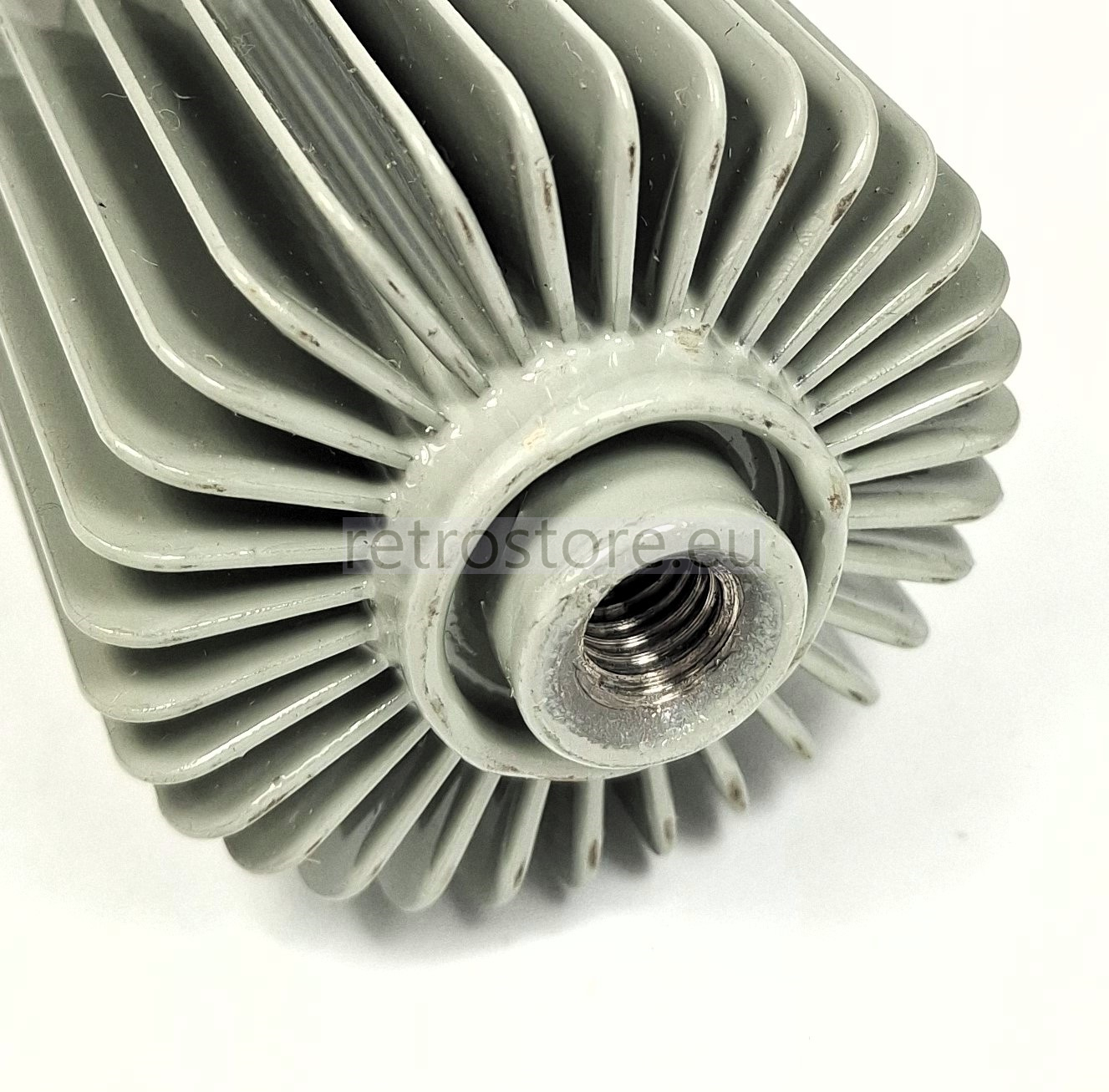

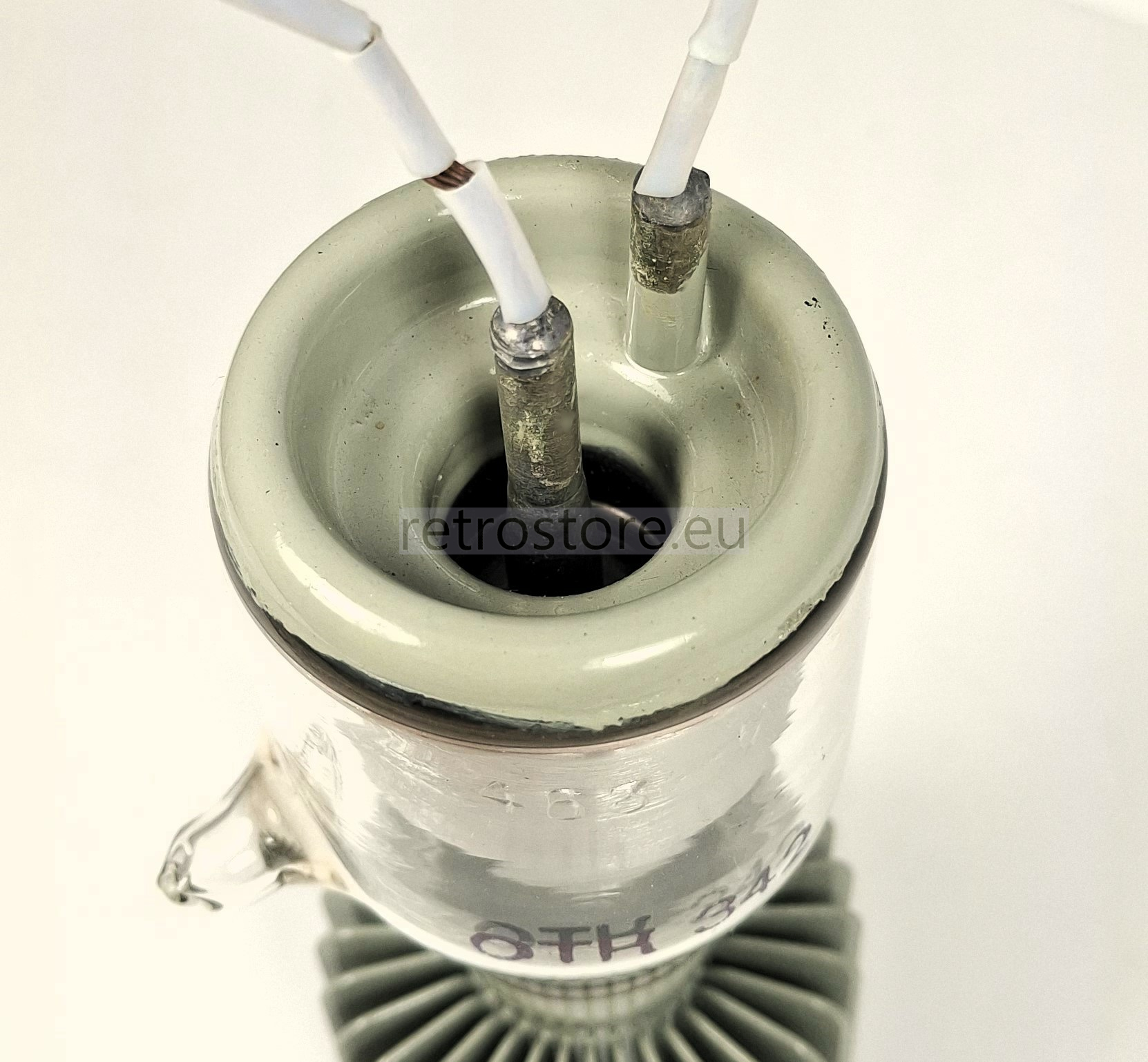

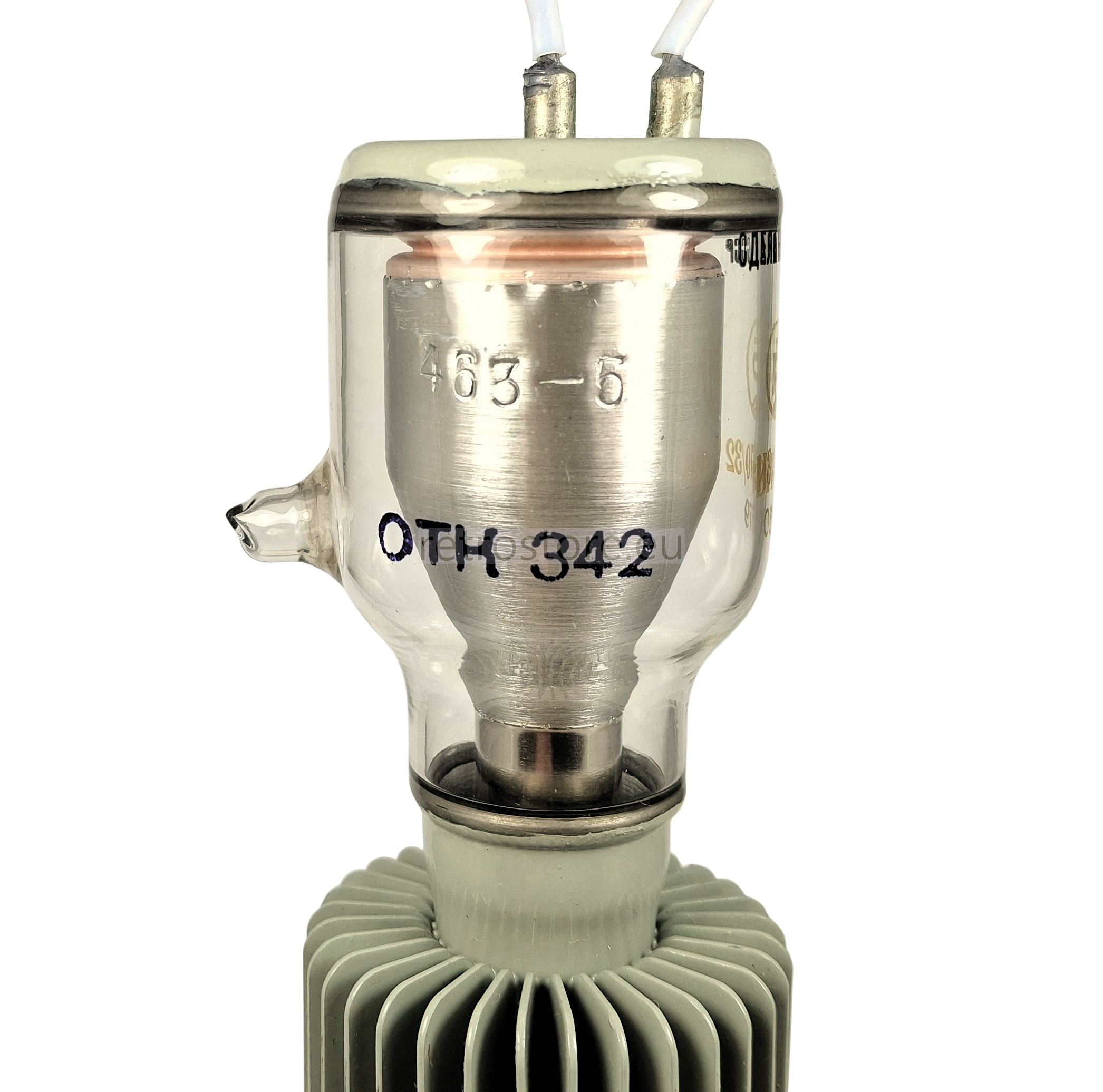

Vintage soviet high voltage rectifier tube VIZ-70/32 (ВИЗ-70/32) with maximum anode dissipation of 80W and maximum anode current in pulse of 70A was used in old stacionary and movable RF equipment. Maximum reverse anode voltage is 32kV. That is actually the reason why it is marked 70/32. Weight of this air cooled tube is approximately 300g (400g maximum). Width is app. 5cm and the height around 13 cm (measured without the copper wire connectors on the top of the tube). New in box tubes, directly from the old reserves. Original datasheet is included. Year of production: 1979 (please look at the gallery pictures).

(we reserve the right to change the description and specifications without prior notice)
