two-pole toggle switch P2T-8 - (NOS)

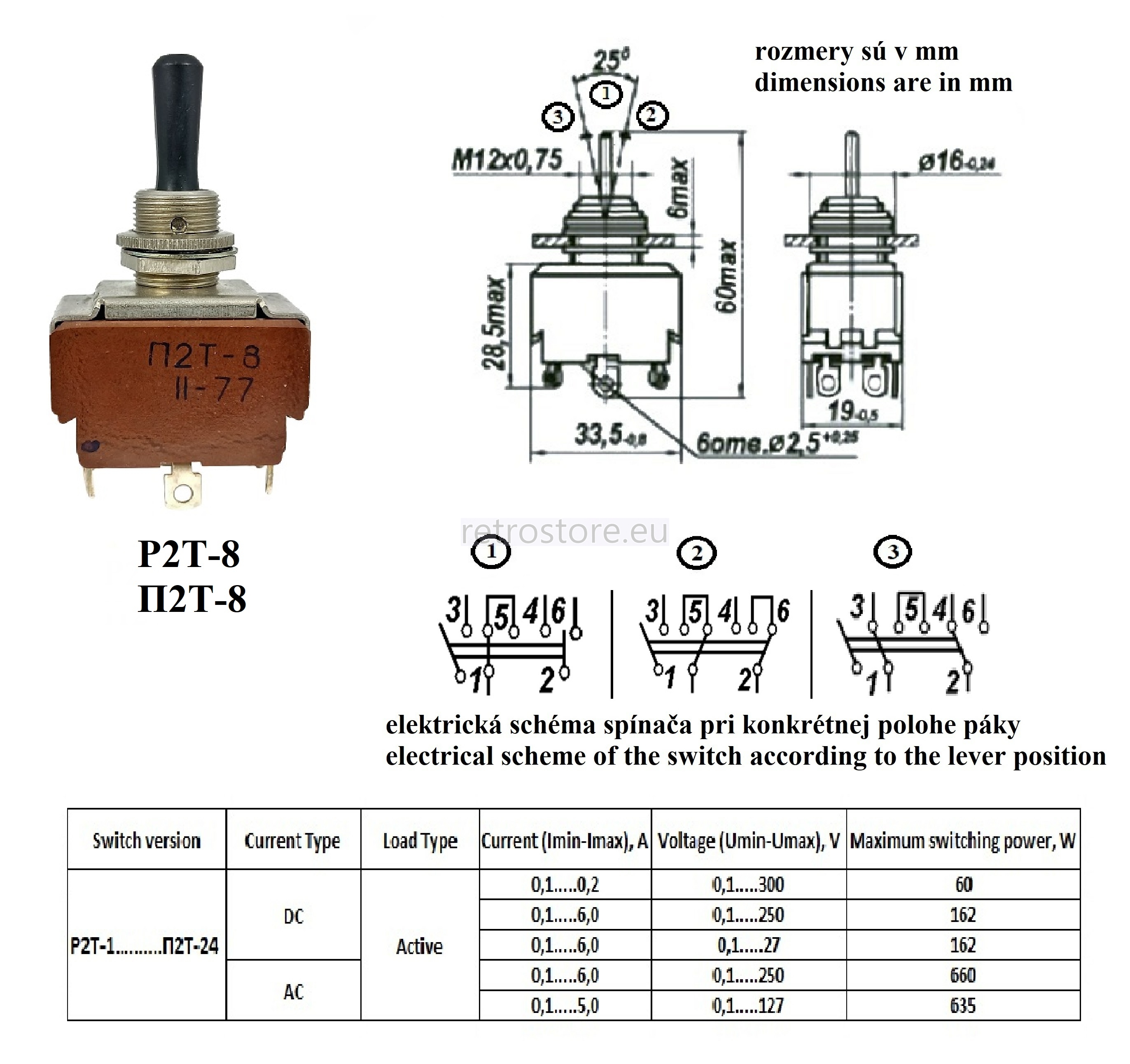

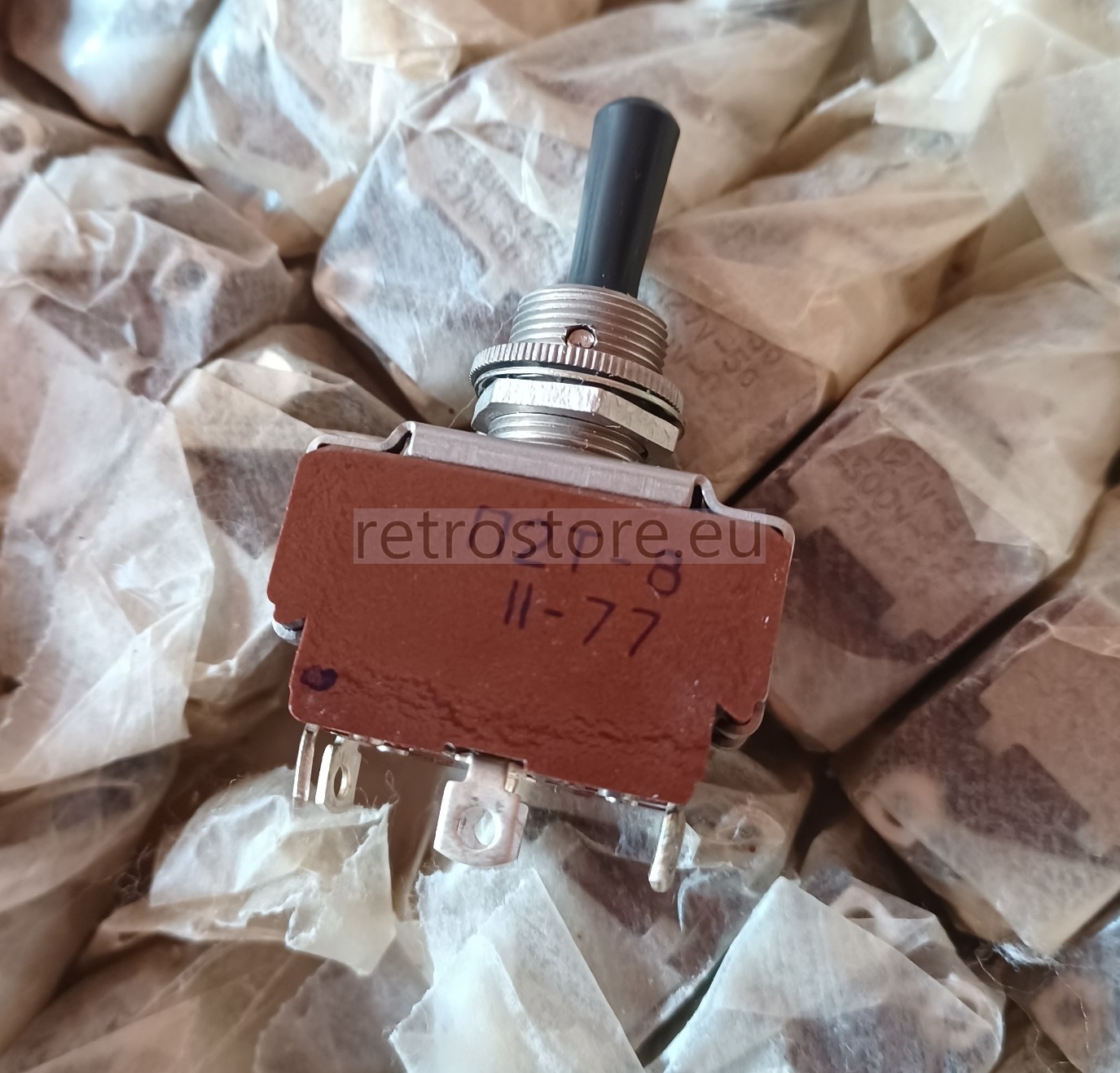

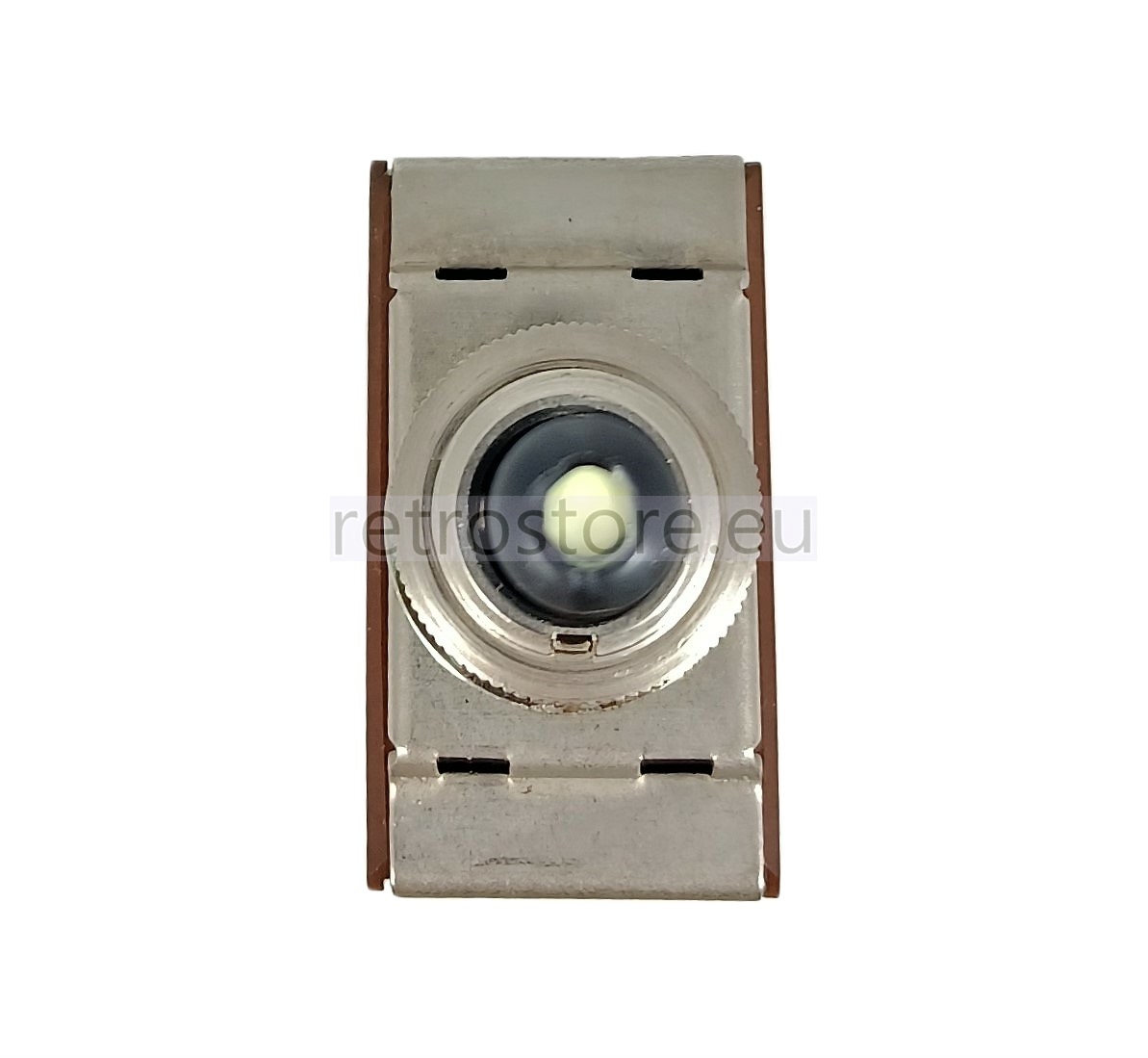

Vintage bipolar toggle switch P2T-8 (П2Т-8) is designed for switching electrical circuits of direct and alternating current in electronic radio equipment. Work algorithm: ON-OFF-ON. There is 24 types of the P2T switches, which are marked from P2T-1 to P2T-24. Current: Imin-Imax (0,1-6A), Voltage: Umin-Umax (0,1-250V). Lever position is fixed in the middle (1) and also both extreme positions (2 and 3), please look at the details in the gallery. Lever: plastic (with illumination). Mounting type: on the panel. Operating temperature range: from -60°C to + 85°C. Number of switching cycles: 5000 (2500 at +85°C). Weight: max 38 g. New old stock switches, directly from the factory packing. Made in the 70's and 80's.
(we reserve the right to change the description and specifications without prior notice)
